VLF Hipot test set

Main Technical parameter:

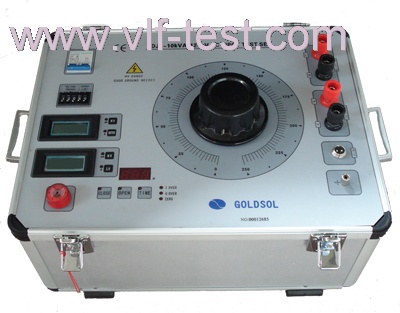

I.Control unit
1.Power supply: 220V, 50Hz
2.Output voltage: AC 0～250V
3.Capacitance: 10KVA
4.Output current: AC 0～50A
5. Timing: 0～999s
6. Size: 40*30*20cm;
7. Net weight: 18kgs
8.Environment Requirement
 1）Environment Temperature: -10℃ ～40℃
 2）Relative humidity: ≤80%
9.Safety performance
 1）Insulating resistance: ＞2MΩ
 2）Leakage current: ＜3.5mA
 3）Dielectric strength: The chassis can withstand 1500V (50Hz effective value) for 1 minute.
10.Test Accuracy of current/voltage:  2% reading +2 digit

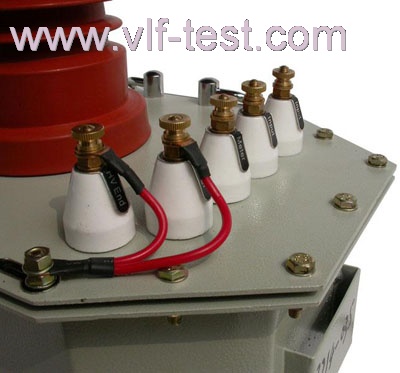

II. Oil Immersed Test Transformer：
1. Capacity：10KVA
2. Input Voltage：AC220V 50Hz
3. Power Input：50A
4. Output Voltage：AC:0-100KV ( for AC/DC dual purpose: AC 0-100KV; DC 0-140KV).
5. Output current: AC 100mA (for AC/DC dual purpose: AC 0-100mA; DC 0-71.4mA).
6. Transformer Ratio：1000
7. Accuracy：<2%（F.S）
8.Size: 46*35*96cm
9.Net weight: 125kgs

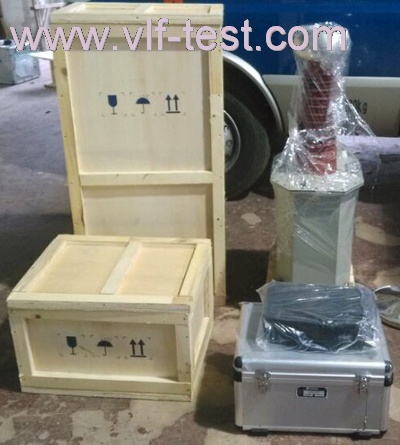

III.Standard configuration
1.Control unit,1 unit
2.Test Transformer,1 unit
3.Power cable,1 unit
4.Test cables,1 set (5 pcs)
5.Earth wire,1 unit (6m)
6.Microamp meter,1 unit (It’s not included if AC Hipot set)
7.Discharge rod,1 unit (It’s not included if AC Hipot set)
8.Operating manual,1 unit
9.Calibration report,1 unit.
