Circuit Breaker Analyzer |
|
|
| Product name：Circuit Breaker Analyzer |
| Item：DL-301 |
| Details： |
Introduction
The High-Voltage Circuit Breakers Analyzer is designed to meet the need of testing High-Voltage Circuit Breakers . It takes the ARM7 unit for core to sample, process and then output; the main characteristic is that it’s operated in alt. It has many advantages such as intelligence, multi-function, accurate data, strong anti-jamming, easy operation, small size, beautiful appearance, etc; It can test the Circuit Breakers as follows: indoors or outdoors Circuit Breakers with less oil or more oil, vacuum Circuit Breakers, SF6 Circuit Breakers and so on.
Features
1, Test standard: IEC62271
2, Closing and opening time measurement of 12 channels
3, Max difference of closing or opening time measurement of three phases
4, C-O and O-C time measurement
5, Rated operation sequence test
6, Bounce time and frequency measurement of breaker closing
7, Circuit breaker closing and opening speed measurement
8, Travel-time, Coil current-time curve of circuit breaker operation measurement
9, Travel and clearance of circuit breaker measurement
10, Variable DC circuit breaker operation power supply
11, Closing arc resistance value and connected time measurement
12, Closing time and opening time of graphite circuit breaker measurement
13, Print test results by internal micro printers
Main Technical parameters
|
Sr no
|
CHANNELS
|
CONFIGURATION
|
RANGE
|
RESOLUTION
|
ACCURACY
|
|
1
|
Contact Status
|
12 channels for Switch off time and switch on time, in-phase synchronization and phase to phase synchronization
|
0.01~25000mS
|
Minimum 0.01mS
|
①250mS: 0.01ms±2 digit
②2500mS: 0.1ms±2 digit
③25000mS: 1ms±2 digit
|
|
2
|
Auxiliary Contacts
|
Dry/Wet selectable
|
DC 0~300V
|
Minimum 0.01mS
|
①250mS: 0.01ms±2 digit
②2500mS: 0.1ms±2 digit
③25000mS: 1ms±2 digit
|
|
3
|
Coil Current
|
Trip/Close coil current
|
20A DC
|
0.01A
|
±2%+0.2%FS
|
|
4
|
Closing Resistance*
|
6 channels
|
50~10000Ω
|
0.1Ω
|
1%
|
|
5
|
Breaker Control
|
DL-209: Single-chip microcomputer control; DL-301: Industrial personal Computer control
|
|
6
|
Trigger Options
|
Open, Close, C-O, O-C, O-C-O
|
|
7
|
Sampling Speed
|
|
20mS
|
0.01mS
|
①0~2mS: ±0.1ms±1 digit
② >2mS: ±0.2ms±1 digit
|
|
8
|
Trip
|
Vacuum circuit breaker
|
50mm
|
0.1mm
|
±0.1ms±1 digit
|
|
SF6 circuit breaker (for option)
|
300mm
|
1mm
|
|
Less-oil circuit breaker (for option)
|
600mm
|
|
9
|
Test Results
|
Clear graphical result with test header and computation footer
|
|
10
|
Display
|
320 x 240 LCD
|
|
11
|
Communication
|
USB port, for data download
|
|
12
|
Printer
|
56 mm paper width, thermal printer
|
|
13
|
Environment
|
Temperature: operation: -10° C to 50°C; Storage: -30°C to 70°C
|
|
14
|
Power
|
220V±10% 50Hz±10%
|
|
15
|
Demension
|
360mm(L)×280mm(W)×300mm(H)
|
|
16
|
Weight
|
10kg
|
|
17
|
* Model no.DL-209 is without the function of closing resistance.
|

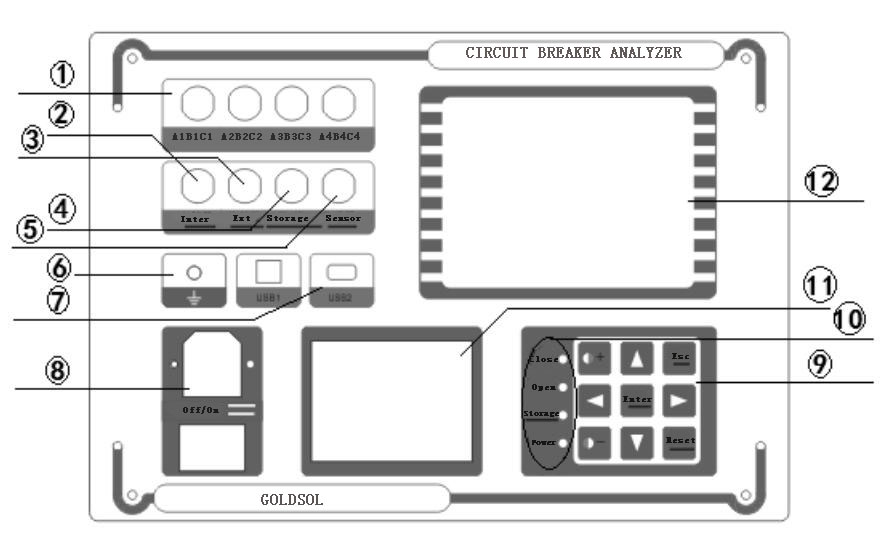

Panel
|
Sr no.
|
Mark
|
Description
|
|
①
|
A1 B1 C1/A2 B2 C2
A3 B3 C3↓/A4 B4 C4
|
12 channels measuring time
|
|
②
|
Internal Trigger
|
Switch off (on) control DC source is provided
|
|
③
|
External trigger
|
Directly join up in parallel at two ends of switch on and switch off coils when the mode of external trigger is applied, and take the electric signal on the coil as the synchronizing signal.
|
|
④
|
Energe storage
|
Supply DC storage power
|
|
⑤
|
Sensor
|
Input of trip and speed
|
|
⑥
|
Earth
|
Protection ground
|
|
⑦
|
USB
|
PC communication
|
|
⑧
|
Switch on/off
|
220V±10% 50Hz±10% 10A
|
|
⑨
|
Function key press
|
Increase, decrease of liquid crystal contrast
|
|
▲ ▼ Move the cursor up and down or increase, decrease the numerical value where the cursor points.
|
|
◄ ►Move the cursor leftward and rightward.
|
|
OK [OK] means selecting current menu or confirming the operation
|
|
Return [Return] means returning to the upper menu or cancelling the operation
|
|
Reset [Reset] means resetting of the instrument
|
|
⑩
|
Output indicator
|
|
|
11
|
Panel printer
|
Print out test reports and illustrations
|
|
12
|
Display
|
320 x 240 LCD
|
Accessoreis
|
Description
|
Spec
|
Qty
|
Remarks
|
|
Host
|
|
1 unit
|
|
|
Accessaries case
|
|
1 unit
|
|
|
Control cables
|
6 m
|
1 sets
|
|
|
Synchronous cables
|
6 m
|
1 sets
|
|
|
Sensor cable
|
6 m
|
1 unit
|
Multi core shielding wire
|
|
Fracture signal wires
|
4 m
|
6 units
|
Red 2pcs,green 2pcs and yellow 2pcs
|
|
Fracture signal ground wires
|
4 m
|
1 unit
|
Black
|
|
Fracture signal wires
|
8 m
|
6 units
|
Red 2pcs,green 2pcs and yellow 2pcs
|
|
Fracture signal ground wires
|
8 m
|
1 unit
|
Black
|
|
Short connection wire
|
2 m
|
2 units
|
Black
|
|
Grounding wire
|
2 m
|
1 unit
|
Clear
|
|
Power supply cable
|
1.5 m
|
1 unit
|
|
|
Linear Sensor
|
50 mm
|
1 set
|
Vacuum circuit breaker testing
|
|
Rotary Sensor
|
|
1 set
|
|
|
Magnetic base
|
|
1 unit
|
|
|
Fuse
|
20A
|
2 pcs
|
|
|
Print Paper
|
57.5mm
|
2 units
|
|
|
Operating manual
|
|
1 unit
|
|
|
Calibration
|
|
1 unit
|
|
|
SF6 circuit breaker
|
300mm
|
1
|
For buyer’s option
|
|
Less-oil circuit breaker
|
600mm
|
1
|
For buyer’s option
|
|
 |
