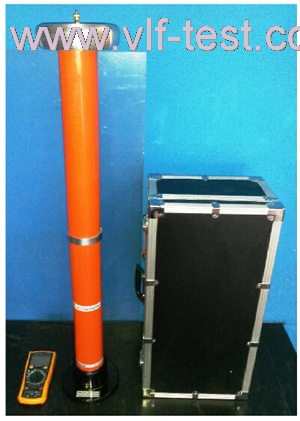

Purpose:
The Divider can be used to measure AC & DC high voltage, it has digital display, high measurement accuracy
and good stability.
Character：
The digital high voltage meter is used for measuring the line-frequency high alternating and
direct-currency voltage in the electrical power system and the manufacturing department of the
electric installation and the electrical aid. The measurement parts and the displaying parts of
the high pressure gauge are divided. It is safe and reliable by adopting the portable type.
The measuring results have a high linearity.
Technical data
1.Measuring range: FRC-50: AC 0-50KV; DC 0-70KV;
2.Testing Accuracy: AC 1.0%, DC 0.5%
3.Divider rato: 1:1000
4.Condition: Temperature 0～50℃; Humidity:<95%
5.Temperature coefficient: < 0.1%/°C
6.Voltage coefficient:< 0.2%
|
Spec.
|
Range
|
Size （mm）
|
Weight
(KG)
|
Accuracy
|
|
AC
|
DC
|
|
FRC-50M
|
50
|
70
|
Ø50x500
|
2.5
|
AC1.0%; DC 0.5%
|
|
FRC-100M
|
100
|
140
|
Ø50x1000
|
5
|
AC1.0%; DC 0.5%
|
|
FRC-150M
|
150
|
210
|
Ø145x1000
|
7
|
AC1.0%; DC 0.5%
|
|
FRC-200M
|
200
|
280
|
Ø145x1150
|
15
|
AC1.0%; DC 0.5%
|
|
FRC-300M
|
300
|
400
|
Ø145x1280
|
25
|
AC1.0%; DC 0.5%
|
