Overview
Karl Fischer Coulomb titration is the most reliable method to detect trace moisture for different substances, which was utilized successfully by trace moisture titrator. What’s important, this instrument is able to work more reliably and conveniently by using the most advanced control circuit and 32 bit embedded microcontroller processor as the master control core and utilizing embedded mini operating system. Character with fast analyzing speed, simple operation, high precision and strong automatism, the trace moisture titrator has been widely used in the industry of petroleum, chemical, power, railway, pesticide, medicine and environmental protection.
Instrument features：
●Utilizing 32 bit embedded microcontroller processor as the master control core and embedded mini operating system.
●Be stable and reliable because of constant pressure detection, high precision and rapid measuring speed.
●Simple operation and convenient digital calculation due to color touch screen and full digital keyboard.
●·Four calculation formulas are included, which can meet the different requirement of customer.
●Miniature thermal printer with time record make searching more convenient.
● New profile is designed according to the ergonomics.
●Creative and optimal operating software will bring a different touch experience for you.
Technical parameters
-Titration method：Coulometric titration（Coulomb analysis）
-Display：Color LCD touch screen
-Electrolytic current control：0～400mA automatic control
-Measurement scope：0ug～200mg
-Sensitive valve：0.1µg H2O
-Accuracy：10µg～1000µg±3µg
More than 1mg but not greater than 0.3%
-Printer：Miniature thermal printer
-Power supply：220V±10%、50Hz
-Power：＜ 40W
-Ambient temperature：5～40℃
-Ambient humidity：≤ 85%
-External dimension：340×300×350
-Weight：About 5.5kg

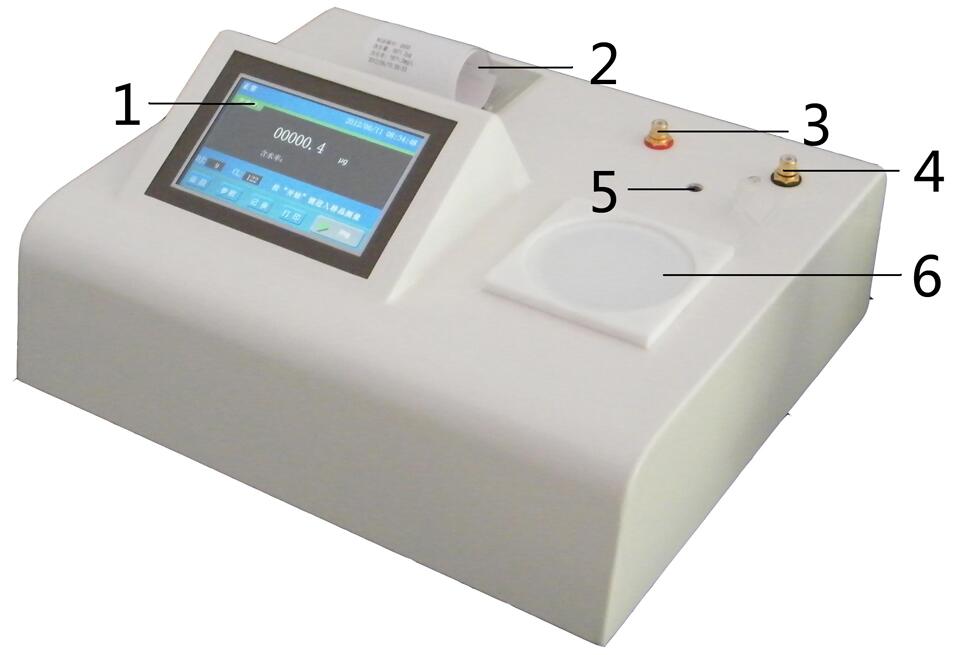

Structure characteristics
1. Color touch screen 2. Printer
3. Electrolytic electrode socket 4. Measuring electrode socket
5. Fixed shaft mounting holes 6. Electrolytic tank socket

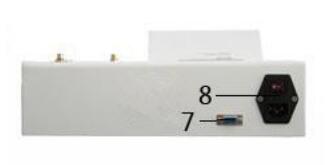

7.RS232 Interface 8. Power socket and integrated switch

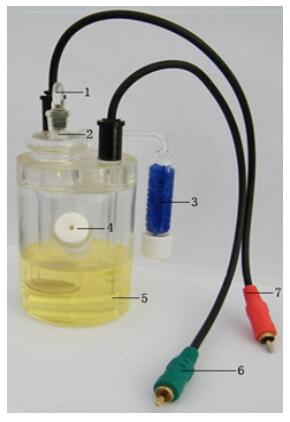

Electrolytic tank schematic diagram：
（1）Grinding plug （2）Cathode compartment
（2）Drying tube （4）Sample cock
（5）Stirrer （6）Measuring electrode
（7）Electrolytic electrode
Accessories
1. Main engine 1 set
2. 1 set of titration pool （One electrolysis pool + one electrolysis electrode + one measuring electrode
+one drying tube+ two ground stopper + one stir bar+ One sample ground stopper + one bag of allochroic silica gel） 1 set
3. Power cord 1 piece
4. 0.5μl micro injector 1 piece
5. 50μl micro injector 1 piece
6. 1ml injector 1 piece
7. Enclosed needle（9#） 1 piece
8. Silicone pad 10 pieces
9. Vacuum grease 1 piece
10. Karl- Fisher reagent electrolysis liquid 1 set
11. Operating instruction 1 piece
12. Factory’s Test Certificate 1 piece
13. Shaft and a clamp 1 set
