Oil breakdown voltage (BDV) tester

Oil breakdown voltage (BDV) tester Oil breakdown voltage (BDV) tester Oil breakdown voltage (BDV) tester Oil breakdown voltage (BDV) tester
Product name:Oil breakdown voltage (BDV) tester
This type of insulating oil dielectric strength tester is a high accuracy and full digital industrial instrument developed by all scientific research and technical personnel of our company according to the relevant standards and regulations of insulating oil test, giving full play to their own advantages, after many field tests and long-term unremitting efforts. The machine is easy to operate and beautiful. Due to the use of fully automatic digital microcomputer control, so the measurement accuracy is high, anti-interference ability is strong, safe and reliable.
2.Instrument features

1) The instrument is controlled by a large-capacity single-chip microcomputer, which is stable and reliable;

2) Temperature, humidity and clock display function;

3) Infrared oil temperature measurement (for buyers option);

4) Wide range watchdog circuit is set in the instrument to eliminate the crash;

5) Multiple operation options. The instrument program is equipped with GB507-1986, GB507-2002, DL429.9, IEC156 standard methods and user-defined operations, which can adapt to various choices of different users;

6) The oil cup of the instrument is cast with special glass and polymer materials at one time to prevent oil leakage and corrosion;

7) The unique high voltage sampling design of the instrument allows the test value to enter the A/D converter directly, avoiding the error caused in the analog circuit and making the measurement results more accurate;

8) The instrument has functions such as overcurrent, overvoltage, short circuit protection, and has strong anti-interference ability and good electromagnetic compatibility;

9) Switch between Chinese and English to meet different customer needs;

10) Analyze its own data to help users judge the quality of oil products;

11) RS232 data transmission;

12) Portable structure, easy to move, easy to use both indoors and outdoors.

13) Wide LCD color touch screen display

3.Technical parameter

1) Booster capacity 1.5 KVA
2) Step up speed 0.5kv/s-5.0kv/s (Step 0.5KV) 10 scales, error 0.2kv/s
3) Output voltage: Model no.YJJ-901A: 0-80 kV;
Model no.YJJ-901B: 0-100KV
4) Voltage accuracy (2% reading + 2 digits)
5) Power distortion rate < 1%
6) Electrode gap: standard 2.5mm
7) Test times: 6 times (1-9 times for optional)
8. Static release time: 900s (0-9000s for optional)
9. Interval rest time: 300s (0-900s for optional)
10. Mixing time: 15s (0-250s for optional)

11. Infrared oil temperature measurement (for optional)

11. Dimension: 650mm × 470mm × 410mm
12. Weight 35kg
4. Operating Conditions
1) Ambient temperature 0-40 ℃
2) Relative humidity ≤ 85%
3) Working power AC 220V (1 ± 10%)
4) Power frequency 50/60 Hz
5) Power consumption < 200 W
5.Panel instruction

(1) LCD: displays date, time, operation parameters, test results,

operation menu prompts and other relevant information;

(2) Printer: prints the average value of single and multiple test results;

(3) Power switch: control instrument power on / off

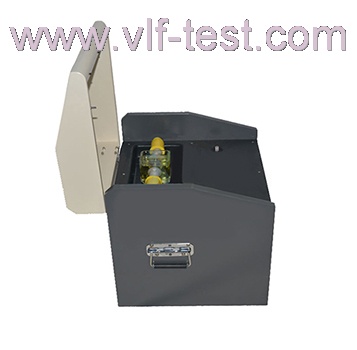

(4) Oil cup cover: after opening the oil cup cover, put or take out the oil cup and

close it before testing;

(5) High voltage sign: triangle sign indicating danger of high voltage;

(6) Power supply: AC 220V 50/60Hz;

(7) Grounding terminal;

(8) USB or RS232 interface

(9) Temperature & humidity sensor: real time temperature and humidity detection

Sr no
Oil cup & Electrode
1 set
Mushroom shape electrode head
1 pair
(Select one)
Spherical shape electrode head
Flat shape electrode head
Power supply cable
1 pc
Standard gauge
1 pc
2 pcs
1 pc
Earth wire
1 pc
Fuse (3A)
2 pcs
Print paper
1 pc
Factory’s calibration
1 pc
