Resonant Test Set

Resonant Test Set Resonant Test Set Resonant Test Set Resonant Test Set

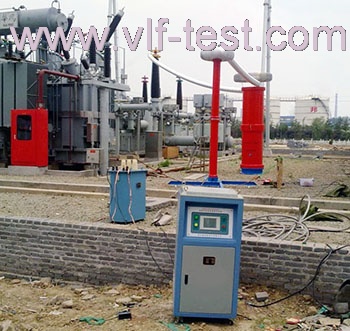

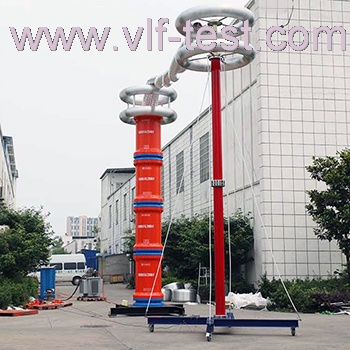

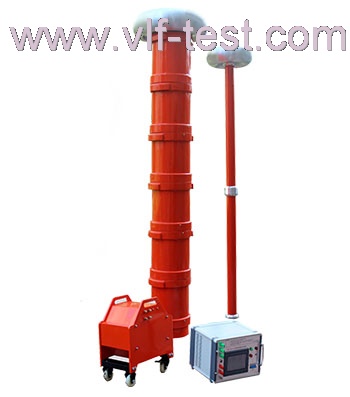

Product name:Resonant Test Set
Item:RTSC series
Details:

General Information
RTSC series AC Resonant Test System for Cables,transformers,switchgears, insulators and GIS are composed of frequency/voltage adjustment power,exciting transformers, reactors, capacitive divider.The power frequency can be adjustable,which make the reactor and tested capacitor resonance.

Features
· Small size, light weight, portable design.
· Suitable for 10KV,35kV,110KV,220KV cables.
· Single parts are easy to carry.
· 220V or 380V single phase power supply,convenient for on-site power sourcing.
· Dry type epoxy cast for reactor,nice and reliable,suitable for various types of cables.

Technical specifications
· Rated output voltage: 0 - 800kV.
· Suitable for 10KV,35kV,110KV,220KV cables.Output frequency: 20 -300Hz.
· Resonant voltage waveform: sine wave, THD ≤ 1%.
· Full load working time: continuous working time 60mins.
· Quality factor: max. load ≥ 20.
· Frequency adjustment: fineness 0.1Hz, instability ≤ 0.01%.
· Power supply: 220V or 380V single-phase.

Main specification for model RTSC series:

Model
 Main Technical Data
 Application
     Main configuration
RTSC-
44/22

Input voltage :220/380V

Output voltage:0-22KV

Capacitance:44KVA

10kV cable ≤ 1km(300 mm² )

2.5kW Variable frequency source 1 set;

2.5kVA Exciting transformer 1 set;

Reactors 22kV/1A, 2 sets

Capacitive divider 30kV/3000pF;

RTSC-
75/75

Input voltage :220/380V

Output voltage:0-75KV

Capacitance:6KVA

10kV cable ≤ 1.5km(300mm² )

35kV cable ≤ 400m(300mm² )

6kW Variable frequency source 1 set;
6kVA Exciting transformer 1 set;

Reactors 25kV/1A 3 units

Capacitive divider 25kV/1000pF, 1 unit

RTSC-
88/44

Input voltage :220/380V

Output voltage:0-22KV

Capacitance:44KVA

10kV cable ≤ 2km(300 mm² )

5.5kW Variable frequency source 1 set;

6kVA Exciting transformer 1 set;

Reactors 44KVA/22kV/2A, 2units;

Capacitive divider 50kV/2500pF, 1 unit

RTSC-
132/22

Input voltage :220/380V

Output voltage:0-22KV

Capacitance:132KVA

10kV (300 mm² ) cable 3km;

6kW Variable frequency source 1 set;
6kVA Exciting transformer 1 set;

Reactors 44KVA/ 22kV/2A, 3units;

Capacitive divider 30kV/3000pF, 1unit;

RTSC-
176/22

Input voltage :220/380V

Output voltage:0-22KV

Capacitance:176KVA

10kV (300 mm² ) cable 4km;


7.5kW Variable frequency source 1 set;

7.5kVA Exciting transformer 1 set;

Reactors 44KVA/22kV/2A,4units

Capacitive divider 30kV3000pF, 1unit

RTSC-
220/22

Input voltage :220/380V

Output voltage:0-22KV

Capacitance:220KVA

10kV (300 mm² ) cable 5km;


11kW Variable frequency source 1 set;

11kVA Exciting transformer 1 set;

Reactors 55KVA/22kV,4units

Capacitive divider 30kV3000pF, 1unit

RTSC-
264/22

Input voltage :220/380V

Output voltage:0-22KV

Capacitance:264KVA

10kV (300 mm² ) cable 6km;


15kW Variable frequency source 1 set;

15kVA Exciting transformer 1 set;

Reactors 44KVA/22kV/2A,6sets;

Capacitive divider 30kV/3000pF, 1unit

RTSC-
108/54

Input voltage :220/380V

Output voltage:0-54KV

Capacitance:108KVA

10kV (300 mm² ) cable 2km;

35kV (300 mm² ) cable 400m;



5.5kW Variable frequency source 1 set;

6kVA Exciting transformer 1 set;

Reactors 27KVA/27kV/1A,4sets;

Capacitive divider 60kV/3000pF, 1unit

RTSC-
135/54

Input voltage :220/380V

Output voltage:0-54KV

Capacitance:135KVA

10kV (300 mm² ) cable 3km;

35kV (300 mm² ) cable 1km;



7.5kW Variable frequency source 1 set;

7.5kVA Exciting transformer 1 set;

Reactors 33.75KVA/27kV,4sets;

Capacitive divider 60kV/2500pF, 1unit

RTSC-
162/54

Input voltage :220/380V

Output voltage:0-54KV

Capacitance:162KVA

10kV (300 mm² ) cable 3km;

35kV (300 mm² ) cable 1km;



11kW Variable frequency source 1 set;

11kVA Exciting transformer 1 set;

Reactors 40.5KVA/27kV,4sets;

Capacitive divider 60kV/2500pF, 1unit

RTSC-
270/54

Input voltage :220/380V

Output voltage:0-54KV

Capacitance:270KVA

10kV (300 mm² ) cable 5km;

35kV (300 mm² ) cable 2km;



15kW Variable frequency source 1 set;

15kVA Exciting transformer 1 set;

Reactors 67.5KVA/27kV,4sets;

Capacitive divider 60kV/3000pF, 1unit

RTSC-
324/54

Input voltage :220/380V

Output voltage:0-54KV

Capacitance:324KVA

10kV (300 mm² ) cable 6km;

35kV (300 mm² ) cable 2.5m;



18.5kW Variable frequency source 1 set;

18.5kVA Exciting transformer 1 set;

Reactors 54KVA/27kV/2A,6 sets;

Capacitive divider 60kV/2500pF, 1unit

RTSC-
330/60

Input voltage :220/380V

Output voltage:0-60KV

Capacitance:330KVA


10kV (300 mm²) cable 8 km;
35kV (300 mm²) cable 2.5 km;
10-35kVswitchgear, transformers

15kW Variable frequency source 1 set;

15kVA Exciting transformer 1 set;

Reactor 22kV/2.5A, 6 sets
Capacitive divider 60kV
RTSC-
108/108

Input voltage :220/380V

Output voltage:0-108KV

Capacitance:108KVA

10kV (300 mm²) cable 2 km;
35kV (300 mm²) cable 0.5 km;

10-35kVswitchgear, transformers system

5.5kW Variable frequency source 1 set;

6kVA Exciting transformer 1 set;

Reactor 27kVA/27KV, 4 units

Capacitive divider 110kV/1500pF

RTSC-
135/108

Input voltage :220/380V

Output voltage:0-108KV

Capacitance:135KVA

10kV (300 mm²) cable 3 km;
35kV (300 mm²) cable 1 km;

10-35kVswitchgear, transformers system

7.5kW Variable frequency source 1 set;

7.5kVA Exciting transformer 1 set;

Reactor 33.75kVA/27KV, 4 units

Capacitive divider 110kV/1500pF

RTSC-
162/108

Input voltage :220/380V

Output voltage:0-108KV

Capacitance:162KVA

10kV (300 mm²) cable 3 km;

35kV (300 mm²) cable 1.2 km;

10-35kVswitchgear, transformers system

11kW Variable frequency source 1 set;

11kVA Exciting transformer 1 set;

Reactor 40.5kVA/27KV, 4 units

Capacitive divider 110kV/1500pF

RTSC-
216/108

Input voltage :220/380V

Output voltage:0-108KV

Capacitance:216KVA

10kV (300 mm²) cable 4 km;

35kV (300 mm²) cable 1.6 km;

10-35kVswitchgear, transformers system

11kW Variable frequency source 1 set;

11kVA Exciting transformer 1 set;

Reactor 54kVA/27KV, 4 units

Capacitive divider 110kV/1500pF

RTSC-
270/108

Input voltage :220/380V

Output voltage:0-108KV

Capacitance:270KVA

10kV (300 mm²) cable 5 km;
35kV (300 mm²) cable 2 km;

10-35kVswitchgear, transformers system

15kW Variable frequency source 1 set;

15kVA Exciting transformer 1 set;

Reactor 67.5kVA/27KV, 4 units

Capacitive divider 110kV/1500pF

RTSC-
324/108

Input voltage :220/380V

Output voltage:0-108KV

Capacitance:324KVA

10kV (300 mm²) cable 6 km;

35kV (300 mm²) cable 2.5 km;

10-35kVswitchgear, transformers system

18.5kW Variable frequency source 1 set;

18.5kVA Exciting transformer 1 set;

Reactor 54kVA/27KV, 6 units

Capacitive divider 110kV/1500pF

RTSC-
405/108

Input voltage :220/380V

Output voltage:0-108KV

Capacitance:405KVA

10kV (300 mm²) cable 8 km;
35kV (300 mm²) cable 3 km;

10-35kVswitchgear, transformers system

22kW Variable frequency source 1 set;

22kVA Exciting transformer 1 set;

Reactor 67.5kVA/27KV, 6 units

Capacitive divider 110kV/1500pF

RTSC-
640/130

Input voltage :220/380V

Output voltage:0-130KV

Capacitance:640KVA

10kV (300 mm²) cable 10 km;
35kV (300 mm² ) cable 4 km;
110kVcable ≤ 1km(400 mm² );
35-110kV GIS

25kW Variable frequency source 1 set;

25kVA Exciting transformer 1 set;

Reactor 32kV/2.5A ,8 sets;

Capacitive divider 130kV

RTSC-
160/160

Input voltage :220/380V

Output voltage:0-160KV

Capacitance:160KVA

110kV main transformer all insulation

11kW Variable frequency source 1 set;

11kVA Exciting transformer 1 set;

Reactor 40KVA/40KV/1A, 4units;

Capacitive divider 160kV/1000pF

RTSC-
216/216

Input voltage :220/380V

Output voltage:0-216KV

Capacitance:216KVA

110kV main transformer all insulation; 110kV GIS;

10kV (300 mm²) cable 3 km;
35kV (300 mm²) cable 1 km;

11kW Variable frequency source 1 set;

11kVA Exciting transformer 1 set;

Reactor 36KVA/36KV/1A, 6units;

Capacitive divider 220kV/1000pF

RTSC-
324/216

Input voltage :220/380V

Output voltage:0-216KV

Capacitance:324KVA

110kV main transformer all insulation; 110kV GIS;

10kV (300 mm²) cable 4 km;
35kV (300 mm²) cable 2 km;

15kW Variable frequency source 1 set;

15kVA Exciting transformer 1 set;

Reactor 54KVA/36KV, 6units;

Capacitive divider 220kV/1000pF

RTSC-
270/270

Input voltage :220/380V

Output voltage:0-270KV

Capacitance:270KVA

110kV system;

132KV GIS;

35kV (300 mm²) cable 1 km;

15kW Variable frequency source 1 set;

15kVA Exciting transformer 1 set;

Reactor 45KVA/45KV/1A, 6units;

Capacitive divider 270kV/500pF

RTSC-
324/270

Input voltage :220/380V

Output voltage:0-270KV

Capacitance:270KVA

110kV system;

132KV GIS;

35kV (300 mm²) cable 1.5 km;

18.5kW Variable frequency source 1 set;

18.5kVA Exciting transformer 1 set;

Reactor 54KVA/45KV, 6units;

Capacitive divider 270kV/500pF

RTSC-
405/270

Input voltage :220/380V

Output voltage:0-270KV

Capacitance:405KVA

110kV system;

132KV GIS;

35kV (300 mm²) cable 2 km;

22kW Variable frequency source 1 set;

22kVA Exciting transformer 1 set;

Reactor 67.5KVA/45KV, 6 units;

Capacitive divider 270kV/500pF

RTSC-
540/270

Input voltage :220/380V

Output voltage:0-270KV

Capacitance:540KVA

110kV system;

132KV GIS;

35kV (300 mm²) cable 2 km;

110kV (300 mm²) cable 0.5 km;

30kW Variable frequency source 1 set;

30kVA Exciting transformer 1 set;

Reactor 90KVA/35KV, 6 units;

Capacitive divider 270kV/500pF

RTSC-
648/270

Input voltage :220/380V

Output voltage:0-270KV

Capacitance:648KVA

110kV system;

132KV GIS;

35kV (300 mm²) cable 4 km;

110kV (300 mm²) cable 2 km;

30kW Variable frequency source 1 set;

30kVA Exciting transformer 1 set;

Reactor 81KVA/45KV/1A, 8 units;

Capacitive divider 270kV/500pF

RTSC-
675/270

Input voltage :220/380V

Output voltage:0-270KV

Capacitance:675KVA

110kV system;

132KV GIS;

35kV (300 mm²) cable 5 km;

110kV (300 mm²) cable 2 km;

37kW Variable frequency source 1 set;

37kVA Exciting transformer 1 set;

Reactor 67.5KVA/27KV, 10 units;

Capacitive divider 270kV/1000pF

RTSC-
810/270

Input voltage :220/380V

Output voltage:0-270KV

Capacitance:810KVA

110kV system;

132KV GIS;

35kV (300 mm²) cable 6 km;


37kW Variable frequency source 1 set;

37kVA Exciting transformer 1 set;

Reactor 81KVA/27KV, 10 units;

Capacitive divider 270kV/1000pF

RTSC-
400/400

Input voltage :220/380V

Output voltage:0-400KV

Capacitance:400KVA

110/132kV transformer & GIS;

220kV transformer & GIS;

22kW Variable frequency source 1 set;

22kVA Exciting transformer 1 set;

Reactor 50KVA/50KV/1A, 8 units;

Capacitive divider 400kV/300pF

RTSC-
800/400

Input voltage :220/380V

Output voltage:0-400KV

Capacitance:800KVA

110/132kV transformer & GIS;

220kV transformer & GIS;



30kW Variable frequency source 1 set;

30kVA Exciting transformer 1 set;

Reactor 80KVA/40KV/2A, 10 units;

Capacitive divider 400kV/300pF

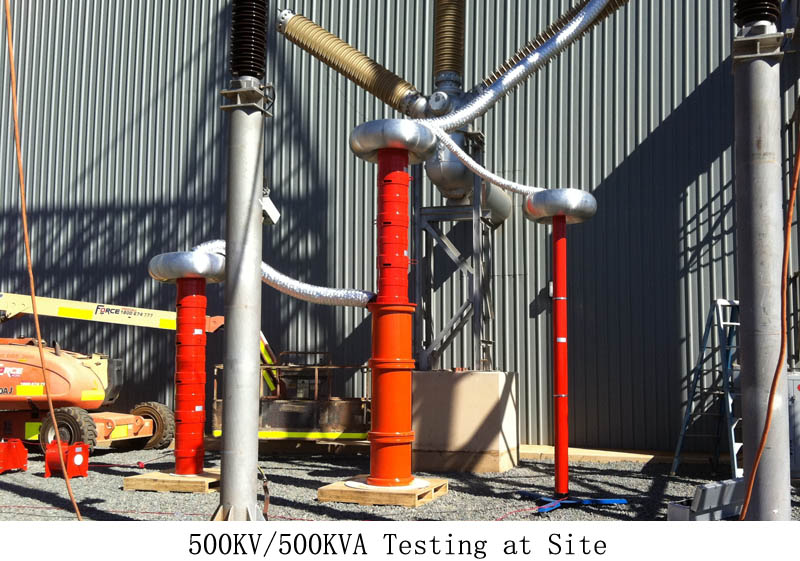

RTSC-
500/500

Input voltage :220/380V

Output voltage:0-500KV

Capacitance:500KVA

220kV transformer & GIS;

220KV system

20kW Variable frequency source 1 set;

20kVA Exciting transformer 1 set;

Reactor 50KVA/50KV/1A, 10 units;

Capacitive divider 500kV/500pF

RTSC-
750/500

Input voltage :220/380V

Output voltage:0-500KV

Capacitance:750KVA

220kV transformer & GIS;

220KV system

37kW Variable frequency source 1 set;

37kVA Exciting transformer 1 set;

Reactor 75KVA/50KV/1.5A, 10 units;

Capacitive divider 500kV/500pF

RTSC-
1000/500

Input voltage :220/380V

Output voltage:0-500KV

Capacitance:1000KVA

220kV transformer & GIS;

220KV system

37kW Variable frequency source 1 set;

37kVA Exciting transformer 1 set;

Reactor 100KVA/50KV/2A, 10 units;

Capacitive divider 500kV/500pF

RTSC-
1950/520

Input voltage :220/380V

Output voltage:0-520KV

Capacitance:

1950KVA

110kV cable ≤ 2.5km;
220kv GIS;
110kV switchgear,transformers;


100kW Variable frequency source 1 set;

100kVA Exciting transformer 1 set;

Reactor 130kV/3.75A 4sets;

Capacitive divider 520kV

RTSC-
3250/520

Input voltage :220/380V

Output voltage:0-520KV

Capacitance:

3250KVA


110kV cable ≤ 5km;
110kV/220kV switchgear;GIS,
Transformers;



150kW Variable frequency source 1 set;

150kVA Exciting transformer 1 set;

Reactor 130kV/6.25A 4sets;

Capacitive divider 520kV

RTSC-
6500/520

Input voltage :220/380V

Output voltage:0-520KV

Capacitance:

6500KVA


110kV cable ≤ 10km;
110kV/220kV switchgear;GIS,
Transformers;



300kW Variable frequency source 1 set;

300kVA Exciting transformer 1 set;

Reactor 130kV/ 12.5A 4sets;

Capacitive divider 520kV

RTSC-
600/600

Input voltage :220/380V

Output voltage:0-600KV

Capacitance:600KVA



35kV - 220kV switchgear;GIS,

Transformers,insulators;

110kV (300 mm²) cable 0.8 km;

220kV (300 mm²) cable 2 km;



30kW Variable frequency source 1 set;

30kVA Exciting transformer 1 set;

Reactor 60KVA/60KV, 10 units;

Capacitive divider 600kV

RTSC-
800/800

Input voltage :220/380V

Output voltage:0-800KV

Capacitance:800KVA



35kV - 500kV switchgear;GIS,

Transformers,insulators;

110kV (300 mm²) cable 0.8 km;

220kV (300 mm²) cable0.5 km;



40kW Variable frequency source 1 set;

40kVA Exciting transformer 1 set;

Reactor 80kVA/80KV, 10 units;

Capacitive divider 800kV

RTSC-
4000/800

Input voltage :220/380V

Output voltage:0-800KV

Capacitance:4000KVA



500kV switchgear;GIS,

Transformers,insulators;

110kV (630 mm²) cable 3 km;

220kV (630 mm²) cable1.2 km;



200kW Variable frequency source 1 set;

200kVA Exciting transformer 1 set;

Reactor 1000kVA/200KV, 4 units;

Capacitive divider 800kV/750pF


- Test parameters can be customized according to buyers requirements.






←[Previous:RTSC-108KVA/108KV]
