VLF Hipot test set

VLF Hipot test set VLF Hipot test set VLF Hipot test set VLF Hipot test set

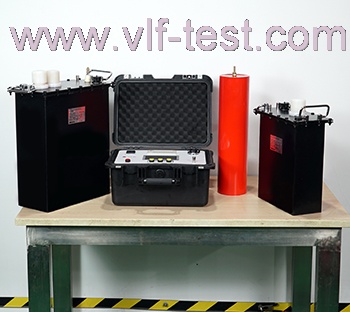

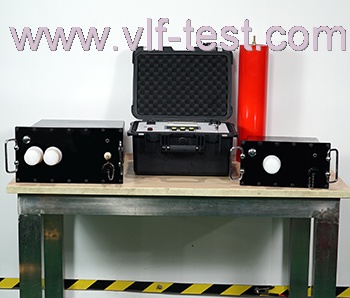

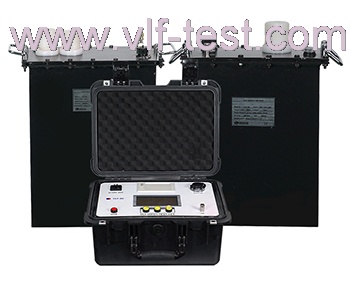

Product name:VLF Hipot test set
Item:VLF-30/40/50/60/70/80/90
Details:
VLF Advantages:
1. Easiest to use Fully automatic microcontroller
2. Built-in printer
3. True sine wave output
4. Real-time display of actual output waveform
5. Ergonomic, menu guided, large backlit LCD
6. Storage of test results for later retrieval and print. True Sine Wave
7. Over voltage and current protected
8. Variable frequency 0.1Hz, 0.05Hz, 0.02 Hz, 0.01 Hz (4 position)
9. Data of current, voltage and waveform directly sampled at HV side.
10. AC testing does not degrade good cable insulation
11. Harmful space charges are not injected into the cable insulation
12. No traveling waves are generated during testing
13. Rugged and reliable design less prone to failure from transients
14. Invatation Patent

Safety Features
1. Short circuit protected.
2. Status display of all important safety functions and messages.
3. Safe, easy to use operation with emergency off and key switch lock-out.
4. Fully integrated discharge circuit to safely ground the DUT after testing.
5. Zero start interlock.
6. Zero voltage switching.

Specifications
1.Power: 220V ± 10% AC, 50/60 Hz, single phase; or 110V ± 10% AC, 50/60 Hz, single phase.
2. AC Output-Voltage (Peak):30KV, 40KV, 50KV, 60KV, 70KV, 80KV, 90KV, 100KV;
3.Output frequency: 0.1Hz, 0.05Hz, 0.02Hz. or 0.1Hz, 0.05Hz, 0.01Hz for option.
4. Stability of frequency: Fluctuation < 0.5%
5. Measurement accuracy: ±3%.
6. Positive and negative voltage peak error: ≤3%.
7. Voltage waveform distortion: ≤5%
8. Construction: In two units: Control unit and Booster.
9. Ambient conditions of use: temperature Indoor and outdoor : -10ºC ~ + 50ºC.
10. Humidity:≤85%

Model no
Output
Voltage/
Current
(Peak)
Load Capacity
Control Unit
Booster
Power
Capacitance/
Freuency
Net Dim.
(cm)
Net Wt
 (kg)
Net Dim.
(cm)
Net Wt(kg)
VLF-30
 30KV/29mA

0.1 Hz, ≤1.1µF
0.05Hz, ≤2.2µF
0.01Hz, ≤11µF

40×24×31
  6
34×16×30
27
1000W
VLF-40
 40KV/29mA

0.1 Hz, ≤1.1µF
0.05Hz, ≤2.2µF
0.01Hz, ≤11µF

40×24×31
  6
44×18×37
45
1200W
VLF-50
 50KV/59mA

0.1 Hz, ≤1.1µF
0.05Hz, ≤2.2µF
0.01Hz, ≤11µF

40×24×31
  6
44×19×37
46
1500W
VLF-60
 60KV/59mA
0.1Hz ≤ 0.5uF
0.05Hz ≤ 1.0uF
0.01Hz ≤ 5.0uF
40×24×31
  6
 45×20×38
48
2000W
VLF-70
 70KV/59mA
0.1Hz ≤ 0.5uF
0.05Hz ≤ 1.0uF
0.01Hz ≤ 5.0uF
 40×24×31
  6
45×20×38
48
2500W
VLF-80
 80KV/59mA
0.1Hz ≤ 0.5uF
0.05Hz ≤ 1.0uF
0.01Hz ≤ 5.0uF
40×24×31
  6
45×20×38
50
3000W
VLF-90
 90KV/59mA
0.1Hz ≤ 0.5uF
0.05Hz ≤ 1.0uF
0.01Hz ≤ 5.0uF
40×24×31
  6
46×22×38
52
3500W
VLF-100
100KV/59mA
0.1Hz ≤ 0.5uF
0.05Hz ≤ 1.0uF
0.01Hz ≤ 5.0uF
40×24×31
  6
46×22×38
52
4000W

Accessories

Sr no.
     Description
Quantity
  1
Control unit
1
unit
  2
Booster
1
unit
  3
Capacitor (0.04µF)
1
unit
  4
Discharge rod
1
unit
  5
HV Test/Connection cables
1
set
  6
Earth cable
1
unit
  7
Power supply cable
1
unit
  8
Fuse
2
units
  9
Printer paper
1
unit
 10
Operating manual
1
unit
 11
Factorys Calibration report
1
unit

[Next:VLF-30,40,50,60,70,80,90,100KV]→
