Products

VLF high voltage tester with tan delta & PD test

VLF high voltage tester with tan delta & PD test VLF high voltage tester with tan delta & PD test VLF high voltage tester with tan delta & PD test VLF high voltage tester with tan delta & PD test

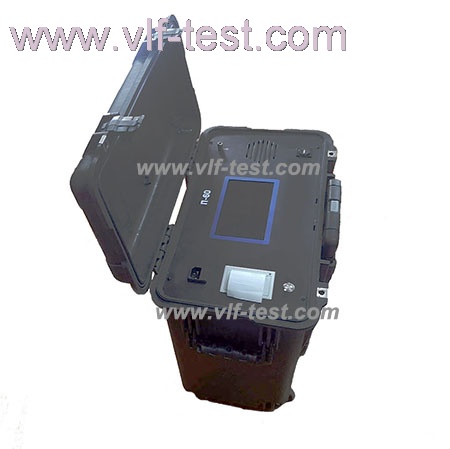

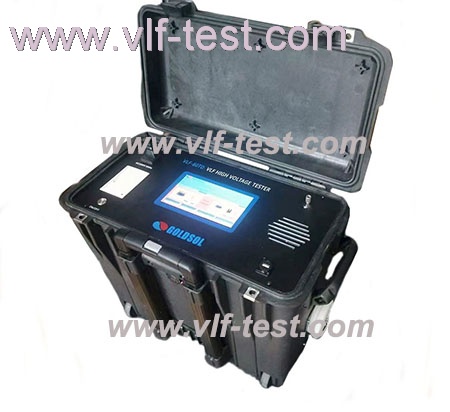

Product name:VLF high voltage tester with tan delta & PD test
Item:VLF-40TD
Price:VLF high voltage tester with tan delta & PD test
Details:
VLF Advantage

1. AC Withstand voltage testing, Voltage & current curve display.

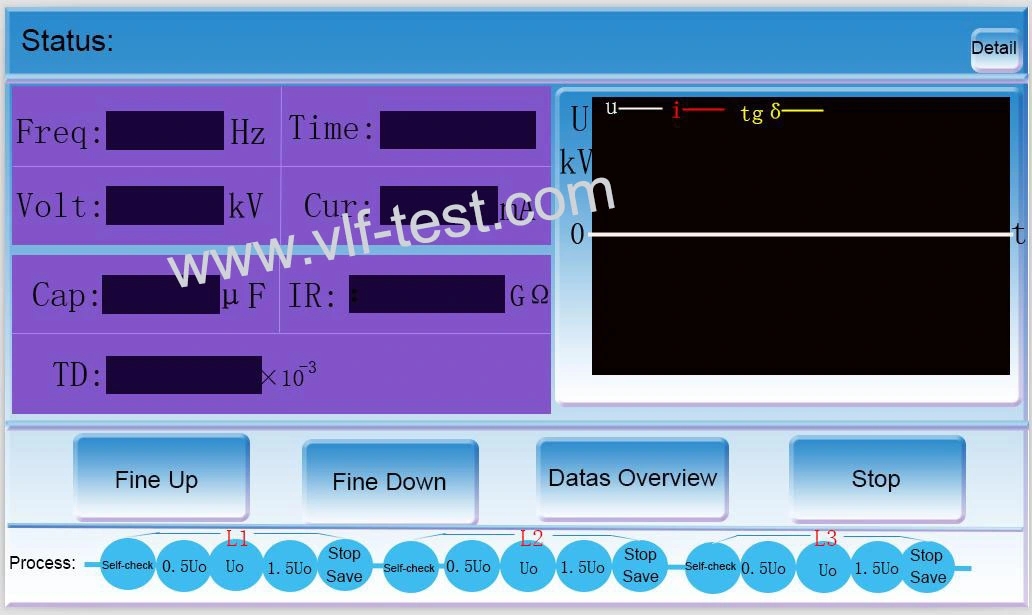

2. Tan delta (tgδ test), capacitance (μF) and IR (Ω) Test without external device.

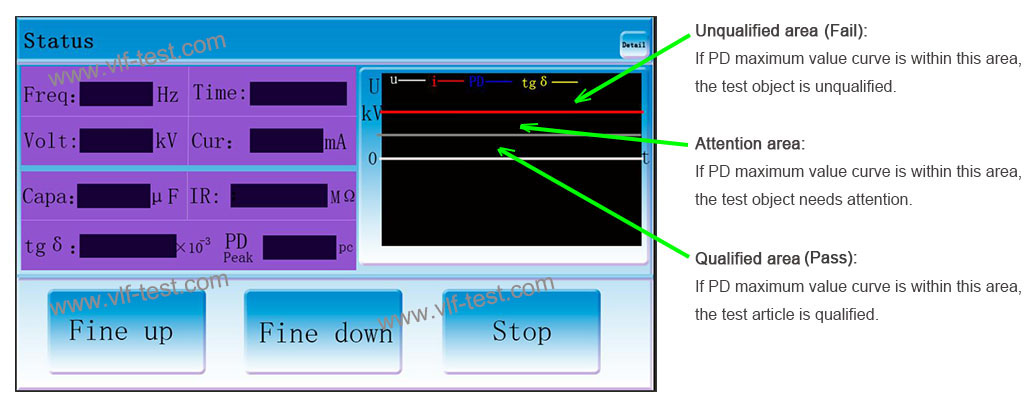

3. Partial discharge testing without external device (for buyers option).

4. DC withstandi voltage test,DC leakage current measurement (for buyer’s option).

5. ”IEE 400.2” Analysis of Tan delta test result.

6. Safe Optical isolation technology.

7. Easiest to use Fully automatic microcontroller.

8. H/L voltage closed loop negative feedback control circuit, output no capacity rise effect.

9. Built-in printer.

10. Built-in protective resistors.

11. Colour Touch LCD (154*86mm)operation, True sine wave output.

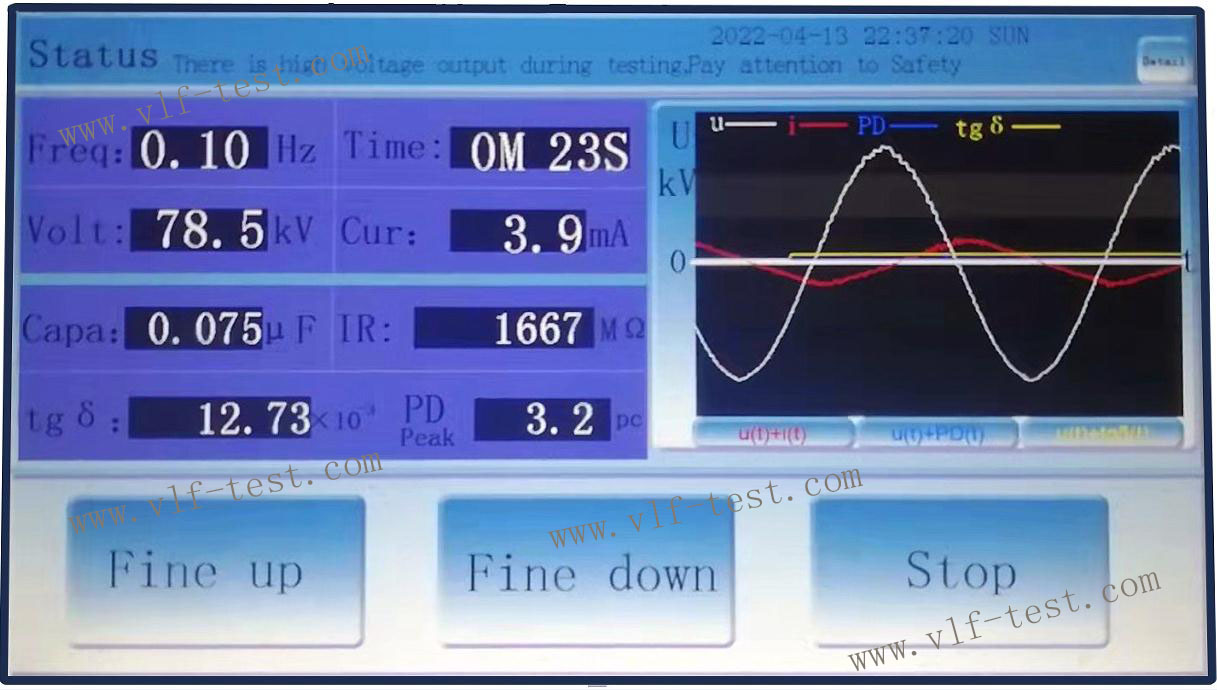

12. Real-time display of actual output waveform.

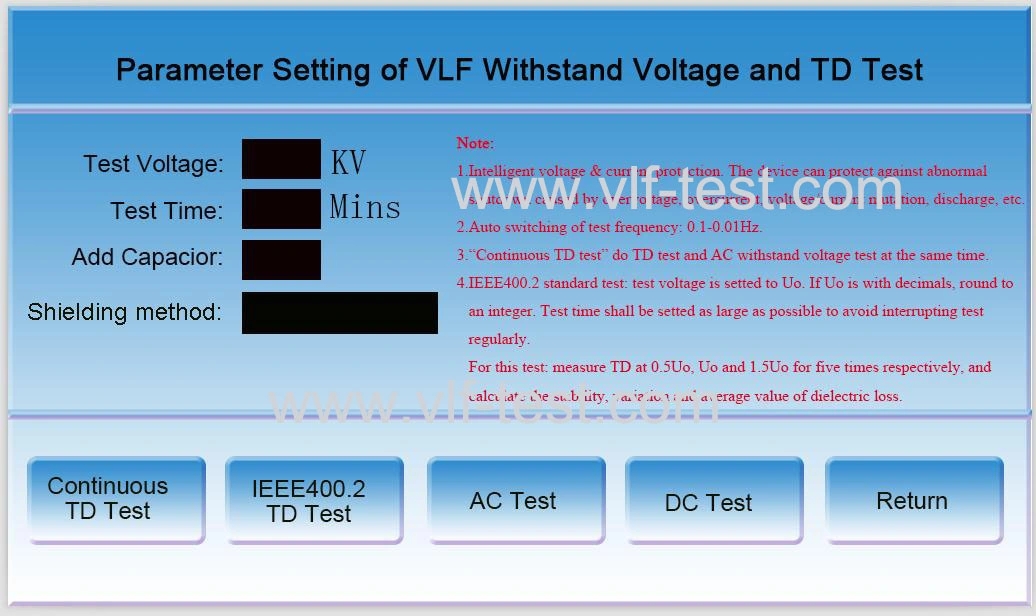

13. Ergonomic, menu guided, large colour touch screen

14. Storage of test results 99 groups for later retrieval and print.

15. Over voltage and current protected.

16.Auto variable frequency 0.1Hz, 0.05Hz, 0.02 Hz, 0.01 Hz.

17. 60 mins continuous working;

18. Data of current, voltage and waveform directly sampled at HV side.

19. IP67 waterproof rugged and reliable design.

20. Invatation Patent

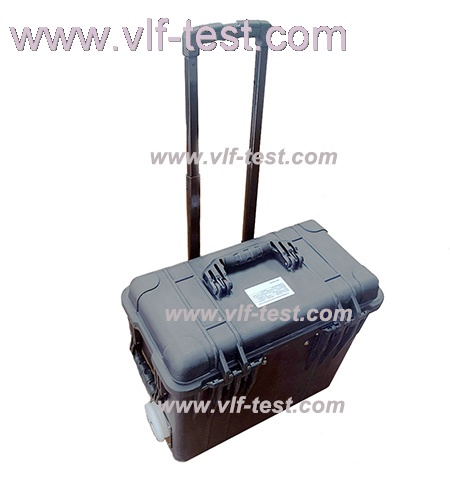

21. Portable: only one unit for 40KV.

22. CE mark.

23. RS232/USB (for buyer’s option).



Specification

1.Power: 220V ± 10% AC (110V can be customized), 50/60Hz, single phase;

2.Output-Voltage (Peak): 1 to 40KV;

3.Output frequency: 0.1Hz, 0.05Hz, 0.02 Hz, 0.01 Hz (auto variable frequency);

4.Load: 0.5μF (approx 6,000 ft of cable)  @ 0.1 Hz

             1.0μF (approx 12,000 ft of cable) @ 0.05 Hz

             2.5μF (approx 30,000 ft of cable) @ 0.02 Hz

             5.0μF (approx 60,000 ft of cable) @ 0.01 Hz

5. Stability of frequency: Fluctuation < 0.5%;

6. Measurement accuracy: ±3%;

7. Positive and negative voltage peak error: ≤3%;

8. Voltage waveform distortion: ≤5%;

9. Construction: only one unit;

10. Ambient conditions of use: temperature Indoor and outdoor : -10ºC ~ + 50ºC.

11. Humidity:≤85%



12. Technical indexes of VLF tgδ test :

1) tgδ test voltage range: 1 to 40KV;

2) Measurement voltage accuracy: 3%

3) Dielectric loss test frequency: 0.1Hz
    4) Measurement range: 0.01×10-3- 655.35×10-3
    5) Dielectric loss accuracy: 1x10-4
    6) Dielectric loss resolution: 1x10-5

7) Capacitance measurement range: 0.001μF-10μF

8) Celectric capacity resolution: 0.001μF

9) Current measurement range: 0–59mA

10) Current resolution: 0.1mA

11) Insulation resistance: 0.01GΩ-65.53GΩ

12) Insulation resistance resolution: 10MΩ






13.Main technical indexes of VLF PD test (for option):

1) Partial discharge measurement range: 0.01pc-200pc

2) Partial discharge detection sensitivity: 0.01pc

3) Capacitance range: 0.001μF-10μF

4) Sampling bits: 12 bits

5) Sampling speed: 12M/S

  6) Test voltage:  0 to rated value (KV)




14.DC leakage current measurement (for option):

1) Output rated voltage: same as rated AC voltage output

2) Voltage accuracy: 3%

3) Leakage current range: 0-2000μA

4) DC Current resolution: 1μA

5) DC current accuracy: 3%

6) It is necessary to parallel the capacitor we supplied if testing DC leakage current.

Model no

Output
Voltage/
Current
(Peak)

Load Capacity

Control Unit

Booster(Tank)

Power

Capacitance/
Freuency

Net Dim.
(cm)

Net Wt (kg)

Net Dim.(cm)

Net Wt(kg)

VLF-40TD

 40KV/30mA

0.1Hz-0.01Hz
Auto Variable
Capacity:≤10µF

46×31×50

  35

  --

  --

1000W

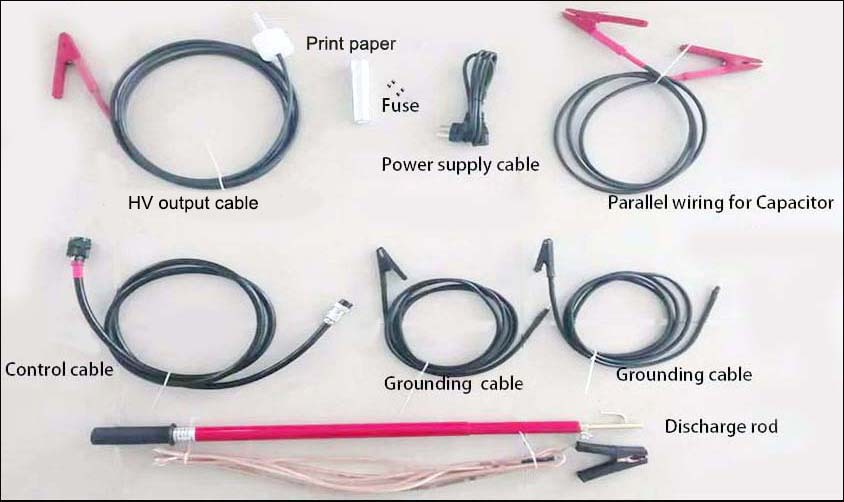

Accessories

Sr no.

     Description

Quantity

Remarks

  1

VLF Hipot Test Set

1

unit



  2

Capacitor (0.04µF)

1

unit

Used as Capacity supplement, or test object for demo

  3

Discharge rod

1

unit



  4

HV Test/Connection cables

1

set



  5

Earth cable

1

unit



  6

Power supply cable

1

unit



  7

Fuse

2

units



  8

Printer paper

1

unit



  9

Operating manual

1

unit



 10

Calibration report

1

unit
