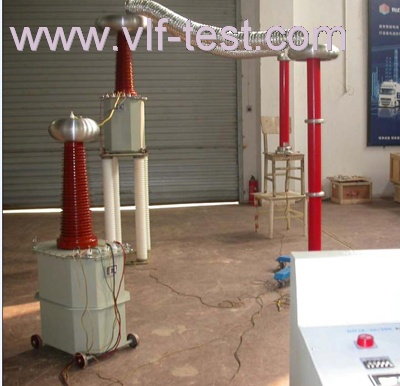

AC/DC High voltage tester |
|
|
| Product name：AC/DC High voltage tester |
| Item：DDJZ-30KVA/300KV |
| Details： |
I. Configuration
|
Sr no
|
Description
|
Qty
|
|
1
|
30kVA digital control unit
|
1
|
|
2
|
30kVA/150kVseries exchtation test transformer
|
1
|
|
3
|
15kVA/150kV test transformer
|
1
|
|
4
|
150kV insulation support
|
1
|
|
5
|
300kV equalizing ball
|
1
|
II. 20KVA digital control unit
● Low voltage resolution：0.1A
● High voltage resolution：1mA
● Meter voltage resolution：0.1V
● Meter HV voltage resolution：0.1kV
● Power supply：AC380V±10% 50Hz
● Output voltage：AC0～450V continous
● Output capacitance：30kVA
● Output current：75A
● Size：610mm×515mm×820mm
● Weight：86kg
III. 20kVA/150kV Series Exchtation Test Transformer
● Capacitance：30kVA
● Input voltage：AC400V
● Output voltage：AC150kV
● Series exchatation voltage：AC200V
● Input current：75A
● Output current：200mA
● Unload Loss ：＜10%
● Short circuit resistance：＜10%
● Ratio error：＜1%
● Meter voltage：100V
● Insulation oil dielectric strength：2.5mm,＞50kV
● Size（mm）：650×540×1710
● Weight：255Kg
IV. Test Transformer 15KVA/150KV
● Capacitance：15kVA
● Input voltage：AC400
● Output voltage：AC150kV
● Input current：37.5A
● Output current：100mA
● Unload Loss ：＜10%
● Short circuit resistance：＜10%
● Ratio error：＜1%
● Meter voltage：100V
● Insulation oil dielectric strength：2.5mm,＞50kV
● Size（mm）：630×500×1650
● Weight：235Kg |
 |
