Circuit breaker Analyzer

Circuit breaker Analyzer Circuit breaker Analyzer Circuit breaker Analyzer Circuit breaker Analyzer

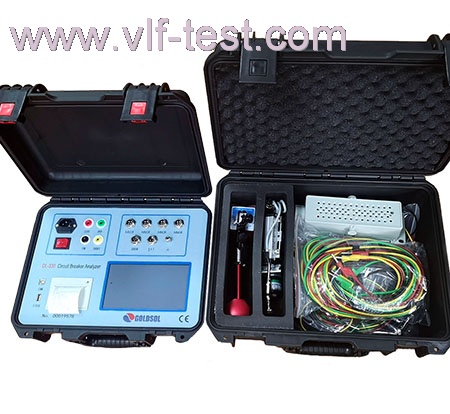

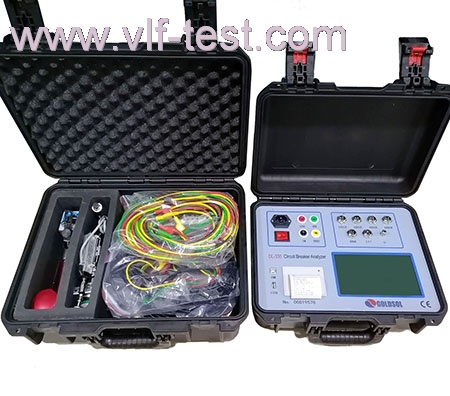

Product name:Circuit breaker Analyzer
Item:DL-329
Details:

Product Overview

DL-329 & DL-330 Switch characteristic tester (CB analyzer) is designed based on the new High Voltage AC Circuit Breakers GB1984-2003. Referring to the electric power industry standard of the People's Republic of China "General Technical Conditions for High Voltage Test Equipment", Part 3, and DL/T846.3-2004 as the design basis, high-voltage circuit breakers assume the dual tasks of control and protection in the power system, and their performance is related to the safe operation of the power system. Mechanical characteristic parameters are one of the important parameters for judging the performance of circuit breakers.

Difference of DL-329 & DL-330: DL-330 can measurement closing resistance.

Functional characteristics

1.This machine can measure the inherent opening and closing time of 12 metal fractures, in-phase synchronization time, phase synchronization time, metal short time and no current time during the closing, opening, closing, and opening opening opening processes, and closing bounce time. Some models can measure the pre switching time of the closing resistor.

2.This machine can record and measure the closing bounce time, bounce times, bounce process,and bounce waveform of each fracture.

3.This machine can record and calculate the rigid opening and closing speed, maximum speed, average speed, total stroke, opening distance, overtravel, rebound amplitude, and time-stroke characteristic curves.

4.This machine can record the opening/closing current value and current waveform of the opening/closing coil, provide DC5~270V/10A (20A) digital adjustable circuit breaker action power supply, automatically complete the low-voltage action test of the circuit breaker, and measure the action voltage value of the circuit breaker.

5. Some models of this machine can simultaneously measure the 6-circuit closing resistance value and its pre switching time.

6. 7-inch high-definition touch screen, easy to operate.

7.Download a dedicated app from your mobile phone,manipulate the instrument through dedicated software,upload test data, and facilitate query.

Technical parameters

Time measurement

250-4000ms
10000-20000ms

Resolution: 0.1ms
Resolution: 1ms

Error: 0.1ms±1digit
Error: 1ms±1digit

Velocity

20.00m/s

Resolution 0.001m/s

Error: ±0.01m/s±1digit

Current

20A

Resoltion: 0.01A

Error: 1%±0.1A

Closing resistance

(DL-330)

50-2000Ω
2000-7000Ω

Accuracy: 0.5%rdg±1Ω

Accuracy: 1%rdg±1Ω

Resolution:

Output power

DC 5-270V adjusting, 20A(Instantaneous operation)

Trip

0-1000(mm),  Resolution: 0.1           Error: 1%±1d

Dimension

Host:360x390x170(mm)         Wires case:425x335x210(mm)

Weight

Host:5.5KG                      Wires case:8KG



Temperature

-10℃-40℃

Humidity

<90%RH,No condensation

Power supply

AC220V±10%

Frequency

50Hz±1Hz

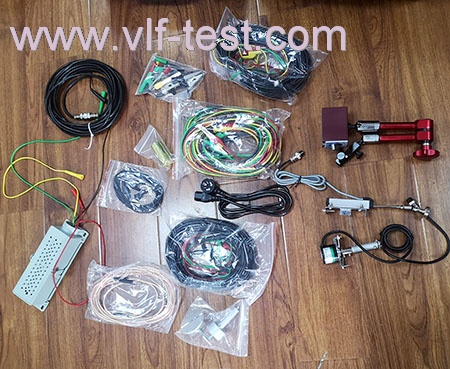

Accessoires

Description

Spec

Qty

Remarks

Host



1 unit



Accessaries case



1 unit



Control cables

6 m

1 sets



Synchronous cables

6 m

1 sets



Sensor cable

6 m

1 unit

Multi core shielding wire

Fracture signal wires

4 m

 6 units

Red 2pcs,green 2pcs and yellow 2pcs

Fracture signal ground wires

4 m

1 unit

Black

Fracture signal wires

8 m

 6 units

Red 2pcs,green 2pcs and yellow 2pcs

Fracture signal ground wires

8 m

1 unit

Black

Short connection wire

2 m

 2 units

Black

Grounding wire

2 m

1 unit

Clear

Power supply cable

1.5 m

1 unit



Linear Sensor

50 mm

1 set

Vacuum circuit breaker testing

Rotary Sensor



1 set



Magnetic base



 1 unit



Fuse

20A

2 pcs



Print Paper

57.5mm

  2 units



Operating manual



 1 unit



Calibration



 1 unit



SF6 circuit breaker

300mm

1

For buyer’s option

Less-oil circuit breaker

1000mm

1

For buyer’s option
