Product Overview

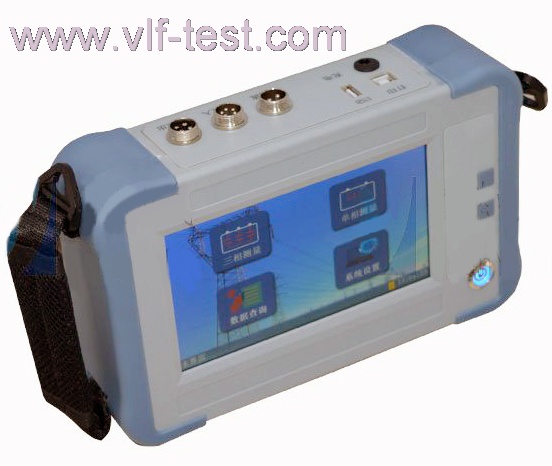

HCI-3 Handheld Capacitance & Inductance Meter is used for measuring the capacitance of capacitive devices such as reactive power compensation and other inductive devices, especially for testing the capacitance of capacitors. It plays an extremely important role in discovering whether capacitors are damaged and avoiding accidents. There are two types of measurement: single-phase measurement and three-phase measurement.
Functional characteristics
♦ This instrument can measure the single capacitance of a group of parallel capacitors without disconnecting the wires (single-phase capacitance and three-phase capacitance can be measured), and it can also measure the inductance of various reactors to meet the needs of various on-site applications.
♦ During measurement, this instrument displays not only the measured capacitance or inductance values, but also the measured voltage, current, frequency, impedance, phase angle, and other data.
♦ The instrument uses high-frequency power output for testing, greatly improving the anti-interference ability on site. It can be tested in high intensity magnetic fields without affecting accuracy.

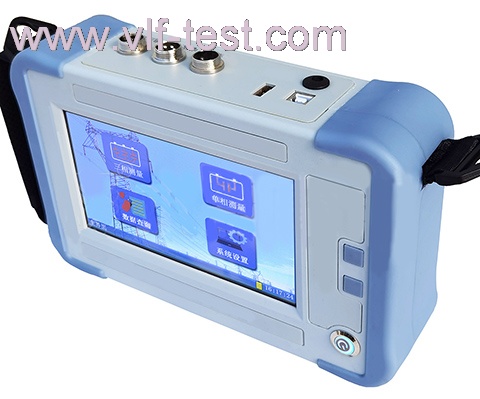

♦ The instrument adopts 7-inch color touch screen with a clear interface.
♦ The instrument is equipped with a large capacity nonvolatile memory that can store 500 sets of measurement data.
♦ The instrument has USB interface and a USB flash drive for data storage.
♦ The instrument has built-in high-precision Real-time clock function, which can calibrate the date and time.
♦ Optional external micro printer for real-time data printing.
♦ The instrument is equipped with a built-in lithium battery power supply, which is convenient for outdoor use.
Technical parameters
|
Test voltage
|
AC 100V±10%,50Hz
|
AC 40V±10%,50Hz
|
|
AC 8V+10%,50Hz
|
AV 2V±10%,50Hz
|
|
Test range
|
Capacity：0.1uF~10000uF
|
±(RD 1%+0.01uF)
|
|
Induct：50uH~20H
|
±(RD 3%+0.05uH)
|
|
Current：5mA-2A
|
±(RD 3%+0.05mA)
|
|
Resistance：20mΩ-20kΩ
|
±(RD 3%+0.1mΩ)
|
|
Battery
|
16.8V/5.2AH
|
|
Dimension
|
Host：252x160x65(mm)
|
Case：425x335x210(mm)
|
|
Weight
|
Host：2KG
|
Case：8KG
|
Environment condition
|
Temperature
|
-10℃~40℃
|
Humidity
|
＜90%RH，non dewing
|

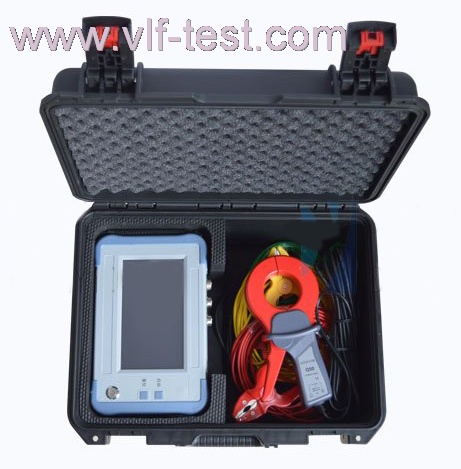

Accessories
|
Sr no
|
Descritption
|
Qty
|
|
1
|
Charging
|
1 unit
|
|
2
|
Test cables
|
1 set
|
|
3
|
Data wire
|
1 unit
|
|
4
|
Factory’s calibration report
|
1 unit
|
|
5
|
Operating manual
|
1 unit
|
