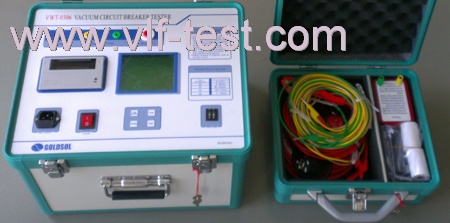

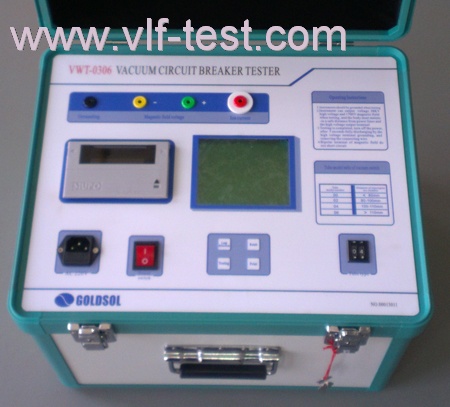

Vacuum Circuit Breaker Tester

I. Advantage

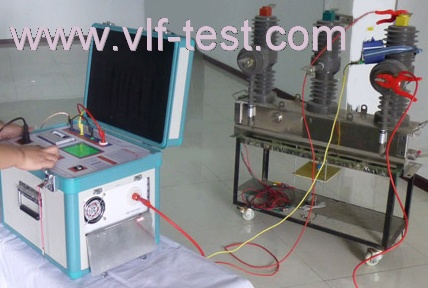

1.The tester test vacuum bottle without remove it from CB housing.
2.It measure vaccum pressure degree of CB by technic of double inverse magnetron discharge Method.
3.It has good precision, stability and intelligent function.
4.Small size and easy to opreate and carry.

II. Technical Parameters:
1. Test object: All kind of Vacuum Switches.
2. Test Method：Non-disassembly measurement.
3. Use Range: Multi-purpose, suitable for testing multi-style vacuum switches.
4. Test Range: 10^-5—10^-1 Pa
5. Test Accuracy: 10^-5—10^-4 Pa, 15%
                               10^-4—10^-3 Pa ,15%
                               10^-3—10^-2 Pa, 10%
                               10^-2—10^-1 Pa ,10%
6. Field Voltage: 1700V
7. Pulse Field High Voltage: 30KV
8. Switch space required: Normal space.
9. Working Enviroment: -20℃~40℃
10. Host weight: 12kg
11. Size: 420×320×280(mm)
12. Sampler: Magnetic control coil
