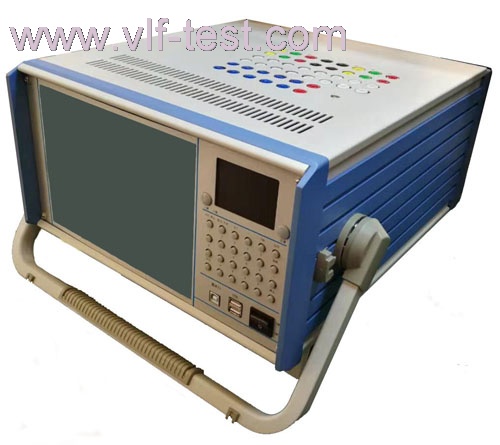

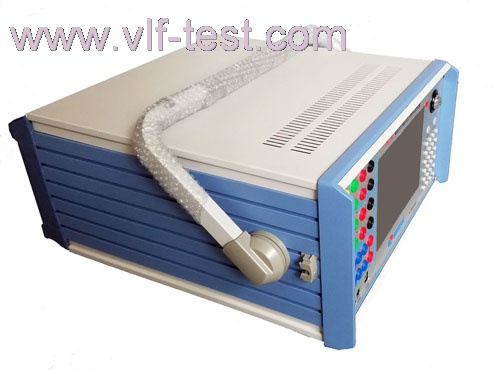

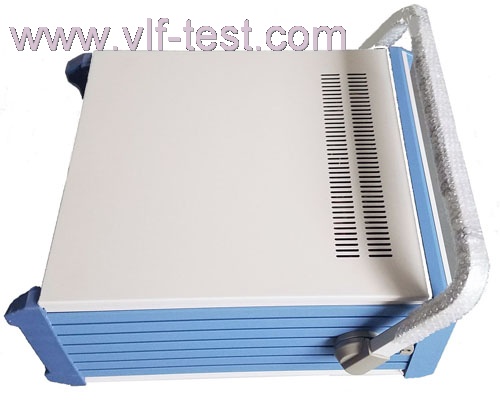

Relay protection tester

Advantage

1. It satisfies all requirements of field test.

JBC-806 tester can simultaneously output standard six-phase current and six-phase voltage with 30A/phase current and 125V/phase voltage. Connecting six phase current in parallel can acquire 180A current. The tester can not only test traditional relays and protective devices, but also test modern microcomputer-based protective devices, especially the differential protection of transformers and automatic switching devices of stand-by power supply. Testing becomes more convenient and perfect.

2. All technical parameters meet the criteria DL/T624-1997 Technical Specifications of Test Equipment Based on Micro-computer for Relaying Protection issued by the Ministry of Electric Power Industry.

3. The host machine, which has embedded high performance IPC (industrial personal computer), can run independently with its 300—600MHz main frequency, 128M memory, 6—12G hard disk and Windows XP operating system.

4. It was the first one in the industry to apply imported stainless steel panel, stainless steel keypad, touch-pad mouse, which overcomes such defects of trackball mouse as difficulty in operating and prone to damage. The TFT true color display is employed with a size of 10 inch and its resolution being 800×600. Consequently, the overall operation of the host machine becomes convenient and durable.

5. The main control board is of DSP+FPGA structure, outputting 16 bit DAC, which may generate 2000 points high density sine wave per week to fundamental wave, greatly ameliorate the quality of waveform and improve the accuracy of tester.

6. The power amplifier is hi-fi linear type, which can both guarantee the precision of low current and the stability of heavy current.

7. The device can directly access to PC machine through USB interface, needless of any patch cord.

8. The device can run by access to notebook computer, which is installed with a same software, needless to relearn how to operate.

9. The device has GPS synchronous testing function with embedded synchronization card (matching), which accesses to PC machine through RS232 interface, so the synchronous testing by exchanging two testers in different places can be achieved.

10. The tester is equipped with independent special DC with auxiliary voltage source output, whose output voltages are 110V (1A), 220V (0.6A), for the purpose of meeting the power need of DC relay or protective devices.

11. The tester has the function of auto-regulation by software, avoiding the calibration accuracy by opening cabinet to regulate potentiometer, so the stability of accuracy is greatly improved.

1.  AC Source:

Magnitude of Current:  6×（0-30A）/phase  Accuracy: 0.2%

Maximum Output of Parallel Six-phase Current: 180A

Longtime Allowable Phase Current: 10A

Power: 300VA/phase

Maximum Power of Parallel Six-phase Current: 900VA

Allowable Action time at Maximum Output of Parallel Six-phase Current: 10s

Frequency Domain: 0--1000Hz；  Accuracy: 0.001Hz

Harmonic Number: 2—20     Phase: 0--360°   Accuracy: 0.1°

2. DC Source:

Magnitude of Current: 20A/phase   Power: 300VA/phase   Accuracy: 0.2%

3. AC Voltage Source

Magnitude of Voltage: 6 ×（0--125V）    Accuracy: 0.2%

Magnitude of Line Voltage: 0--250V

Output Power of Phase Voltage/ Line Voltage: 70VA/100VA

Frequency Domain: 0--1000Hz    Accuracy: 0.001Hz

Harmonic Number: 2—20

4. DC Voltage Source:

Magnitude of Phase Voltage Output: 0--±150V     Accuracy: 0.2%

Magnitude of Line Voltage Output: 0--±300V

Output Power of Phase Voltage/ Line Voltage: 90VA/180VA

5. Switch Signal Terminal:

Input Terminal of Switch Signal: 8 pairs

Dead Contact: 1--20mA，24V active inside the device

Inverse of Electric Potential: 0--6VDC (low level)

                           15--250VDC (up level)

Output Terminal of Switch Signal: 4 pairs, dead contact  Interrupting Capacity:110V/2A，220V/1A。

6. Measuring Range of Time

Range:  1ms～9999s     Accuracy of Measurement:  1ms

7. Volume and Weight

Volume: 470 (mm)×405 (mm)×185 (mm);   circa 20Kg

8. Power Supply:

AC220V±10%;      50Hz   10A

Accessories

1.Portable aluminium alloy box: 1 unit;

1.Power supply cable:  1 unit;

2.CD drive:   1 unit;

3.USB connection:  1 unit;

4.Test cable:  1 set (Current wires 6 units/set; Voltage wires 6 units/set;

  Switch test wores 6 wires/set);

5.Test clip and accessary: 1 set;

6.Fuse: 3units/10A Fuse; 3 units/3A fuse

7.Certificate: 1 unit

8.Calibration Report: 1 unit



9.Operating manual: 1 unit
